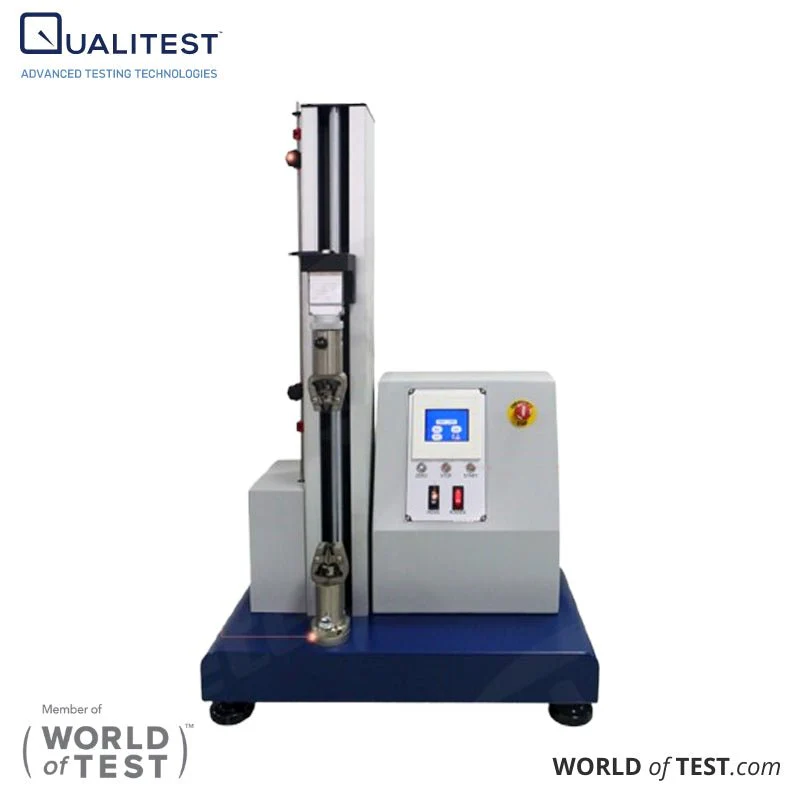

Universal Testing Machine QM-200N

Universal Testing Machine QM-200N is designed with an advanced motor control and algorithm system that optimizes the performance of DC motors, bringing them closer to the capabilities of servo motors. The system automatically adjusts the speed during operation for maximum efficiency, ensuring top-tier performance. With digital speed settings and one-touch testing features, the machine enhances both ease of use and overall efficiency.

Moreover, the specialized testing software for the D3 system is fully compatible with Windows, allowing seamless connection and control via PC. This software supports a range of tests, including tensile, compression, bending, and peeling, providing a user-friendly experience. It also supports multiple languages, both metric and imperial units, real-time curve displays, and offers detailed test analysis and report customization. This makes the QM-200N a versatile and intuitive solution for all your testing needs.

Optional Accessories - Software

Units can be selected in both metric and imperial systems, providing flexibility in measurement. The table layout is fully customizable, allowing users to adjust data positions and customize data names for better organization. The test screen can display test values, curve graphs, or both, depending on the user’s preference.

Data Processing includes options to save, import, list, and perform statistical comparisons. Curve graph settings allow for the visualization of force, elongation, displacement, time, stress, strain, and more. The software supports a wide range of tests, including tensile, compression, bending, peeling, and others.

Software Protection Features include safeguards against over-travel, overload, and excessive operation time, ensuring safe and reliable testing.

Optional Accessories - Load Cell

Features

The load cell is equipped with built-in chips that record its specifications and calibration parameters. This eliminates the need to reset the load cell when it is replaced, as the relevant parameters can be read directly. There is no limit on the number of times the load cell can be replaced.
The accuracy of the grade A/B load cells meets international standards, ensuring reliable and precise measurements.
A wide range of load cells with different types and capacities is available to meet your specific requirements.
The load cell is easy to remove using standard tools, simplifying maintenance and replacement.

Controller System	Grade A Loadcell	Grade B Loadcell
D3	1-100% ±0.5%	1-100% ±1%
Safe Overload	140%	120%

How to Choose a Suitable Load Cell

When selecting a load cell, larger capacity is not always better. The ideal load cell capacity should fall within the range of 1-99% of its total capacity during operation. It is recommended to evaluate the maximum testing force before selecting a load cell. Ideally, choose a load cell with a capacity that is at least twice the maximum testing force to ensure accurate and reliable performance.

Universal Testing Machine QM-200N Features

Versatile Functionality and Enhanced Operational Convenience

Compact and lightweight, this machine offers easy portability, allowing for smooth relocation to any testing site. Its compact size makes it perfect for handling small-scale samples, making it suitable for industries such as electronics, food packaging, pharmaceuticals, and more. Additionally, the equipment is compatible with a wide range of power supplies (100-240V), ensuring flexibility and adaptability across various environments.

Digital Speed Control

Operating within a closed-loop driving system, the motor achieves precision comparable to servo motors. This configuration enables the digital input of test speeds, expanding the range of available speeds and improving accuracy during testing procedures.

Universal Testing Machine QM-200N Technical Specifications

Control Performance
Force Precision	0.5% / 1% (Note 1)
Stroke Resolution	0.001 mm
Data Sampling Rate (adjustable)	50 Hz
AD Input Signal	1 set
Transmission System
Motor	100W 24V DC motor drives
Speed Range	2 - 500 mm/min
Speed Precision	20 - 500 ±1% mm/min
Data Processing System
Network Protocols	TCP/IP
Analysis Modules in Optional Software	Over 170
Language in Optional Software	English and others
Safety Mechanism
Hardware Protection	Upper/Lower limit, emergency stop button
Protection in Optional Software	Force, displacement, time protection
CE Marking	Machinery Directive 2006/42/EC
Electrical Specification
Power Supply	Single phase 100 - 240V, 5A
Max. Power	1100 W

Model	QM-200N
Capacity	0.2 kN
Test Stroke	400 mm
Test Space (A)	55 mm
Width (W)	500 mm
Depth (B)	270 mm
Height (H)	822 mm
Weight	27 kg

Click Here to visit the product webpage

Universal Testing Machines

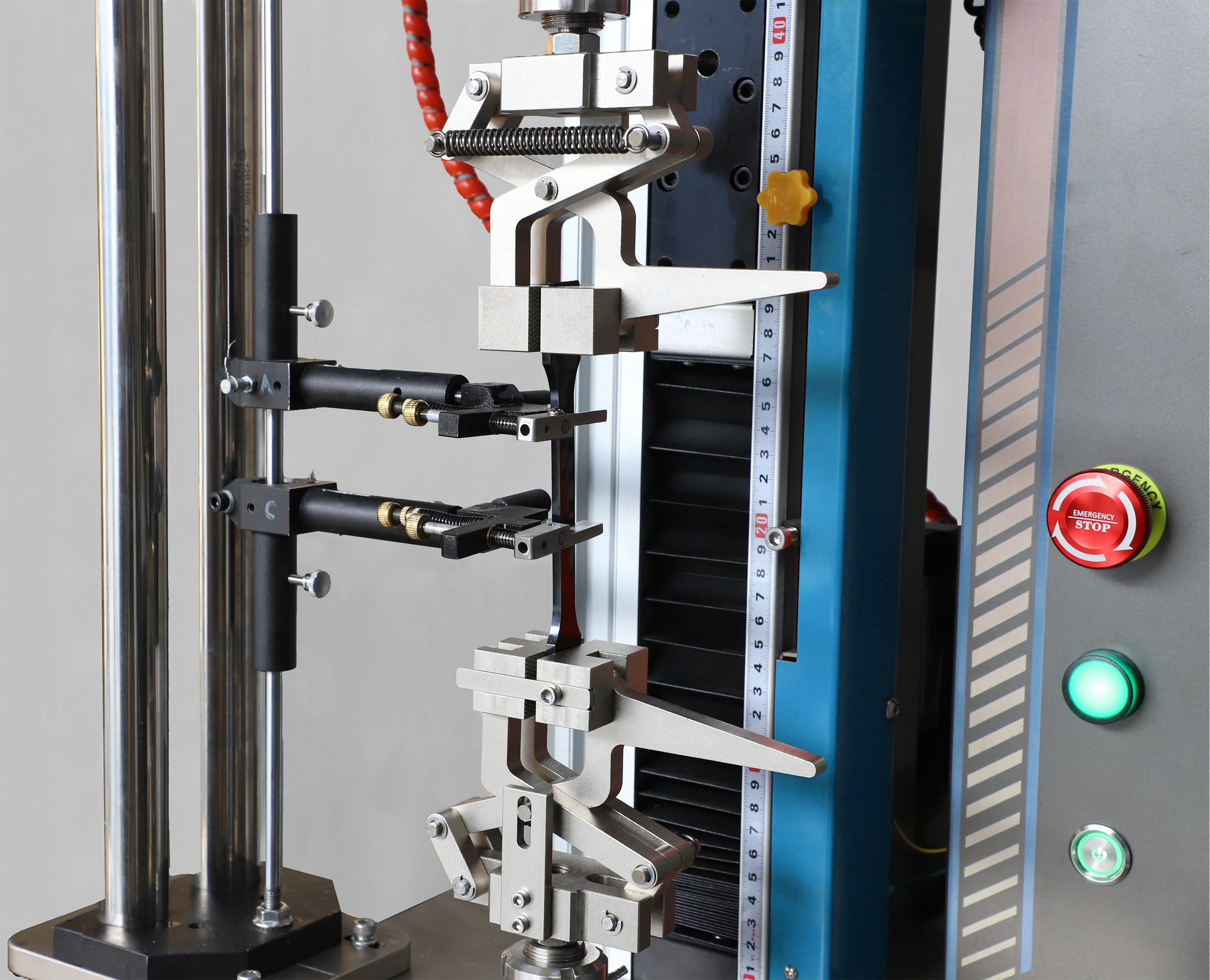

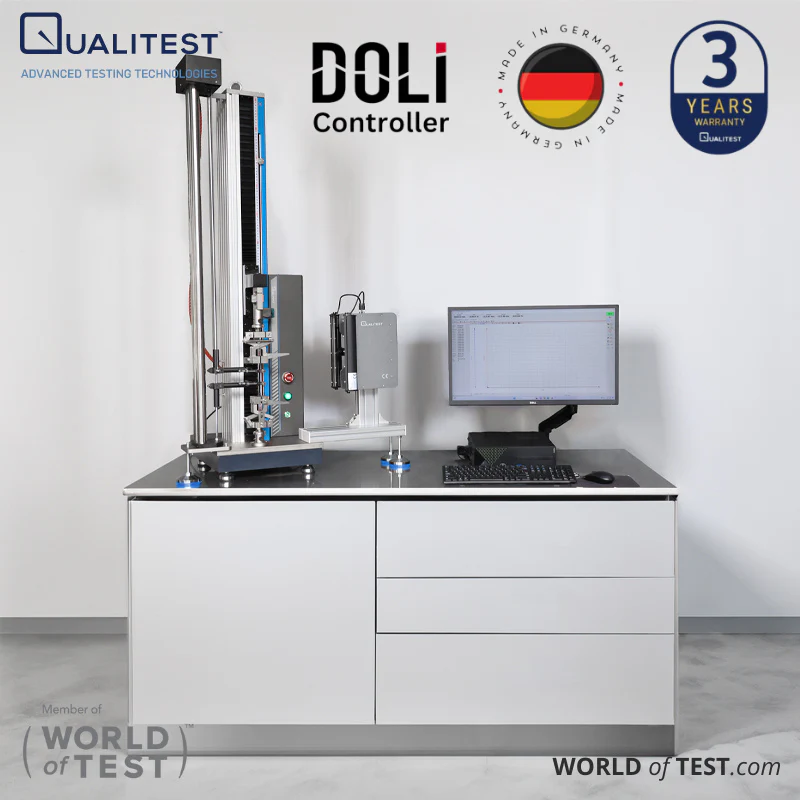

Universal Testing Machines QE-Series Single-Column

Universal Testing Machine QM-200N

Single Column Universal Testing Machine Series - QM-5

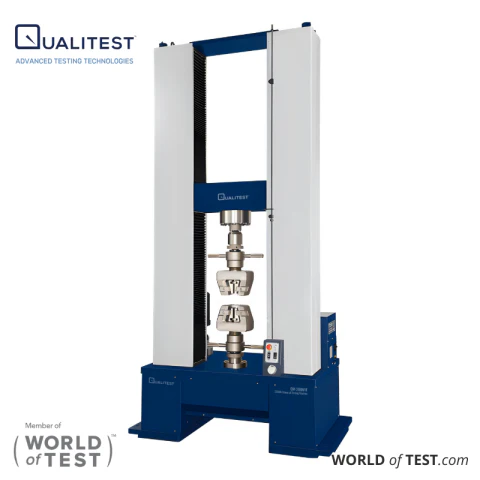

Universal Mechanical Testing Machines - QM 100-600kN

Benchtop Tensile Testing Machine - QTens-I

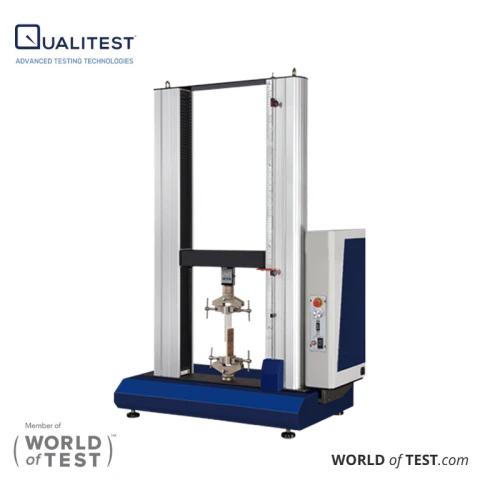

Tensile and Compression Testing Machine - QM-20
