Crock Meter and Crocking Test Machine - Q-Crock100
Overview

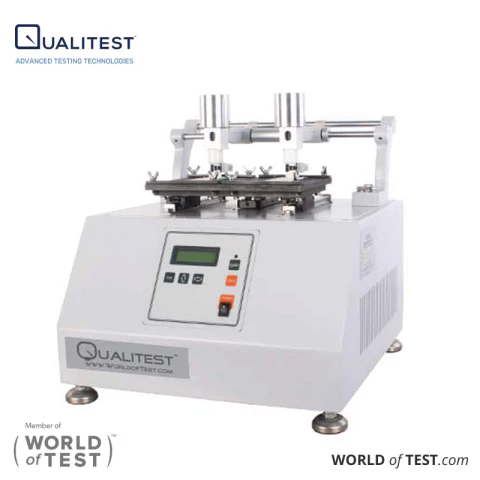

The Q-Crock100 is a reliable electronic crock meter engineered to determine the color fastness of textiles against dry or wet rubbing. Also serving as a robust crocking test machine, this unit ensures consistent results for cotton, wool, silk, and synthetic fibers.
Compliant with ISO 105 and AATCC 8 standards, the Q-Crock100 features a pre-set digital counter and rapid sample mounting, making it an essential tool for quality assurance in dyeing and textile manufacturing.
Features & Benefits
-
Precision Linear Movement: A stable slide rail guides the friction finger, ensuring even pressure and straight-line motion to deliver reproducible data and avoid uneven staining.
-
Digital Cycle Control: Equipped with an electronic counter capable of tracking up to 999,999 strokes, this crock meter automatically stops once the pre-set count is reached.
-
Versatile Testing: Capable of performing both wet and dry rubbing tests, this crocking test machine applies a constant 9N load to assess color transfer accurately on various fabrics.
-
User-Friendly Design: Features an easy-lift system for quick abrasive changes and a pinned acrylic holder that secures samples firmly to prevent wrinkling during operation.
-
Global Compliance & Durability: Built to meet strict ISO and AATCC specifications, the unit is shielded against dust and debris, ensuring a long operational life in busy lab environments.
Crock Meter – Q-Crock100 Technical Specifications
|
Rubbing head |
16 mm |
|
|
Vertical pressure |
9N+/-10% |
|
|
Rubbing stroke |
104 mm |
|
|
Counter |
1 ~ 999,999 times, automatically stop |
|
|
Net Weight |
11 kg |
|
|
Dimensions |
170 mm * 650 mm * 330 mm |
|
|
Power |
220/110 V 50/60 Hz 3 A |
|
|
Standards |
ISO 105x12 (circular rubbing head), GB/T 3920 (circular rubbing head), AATCC8, ISO 20433 Method C |
|
|
Optional Standards |
ISO 105xD02, ISO 105x12 (rectangular rubbing head), GB/T 3920 (rectangular rubbing head), AATCC165 |
Standard Accessories
- AATCC rubbing cloth
- Sand paper
- Clamping sleeve
- Sampling plate
Optional Accessories and consumables
- AATCC/ISO rubbing cloth
- ATCC/ISO Gray Scale for Staining
- Sandpaper
- Rectangular rubbing head with clamp ring
- Circular clamp ring
