Digital Rockwell Hardness Tester - Rocky
The New Standard for High-Volume Rockwell Testing

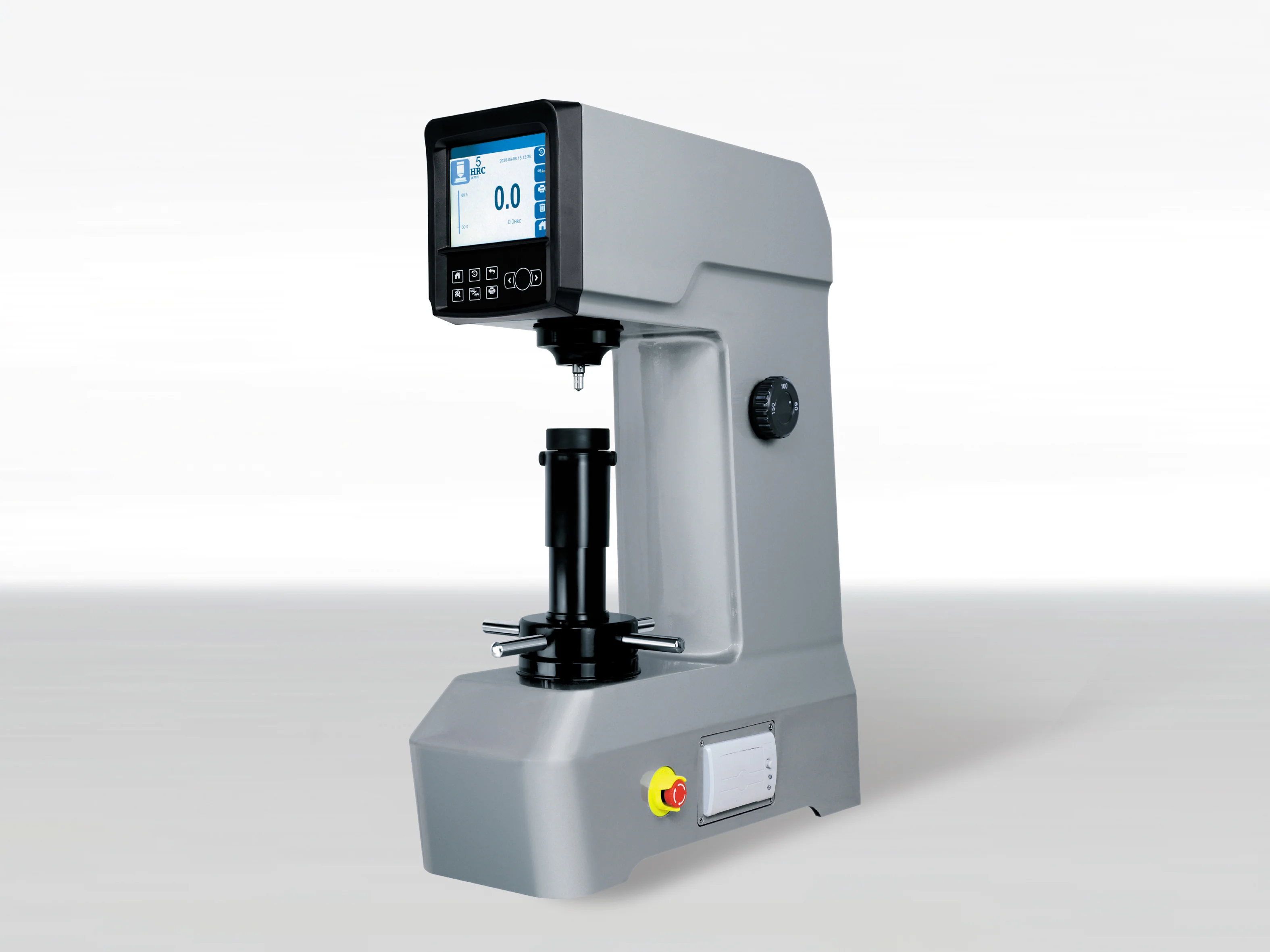

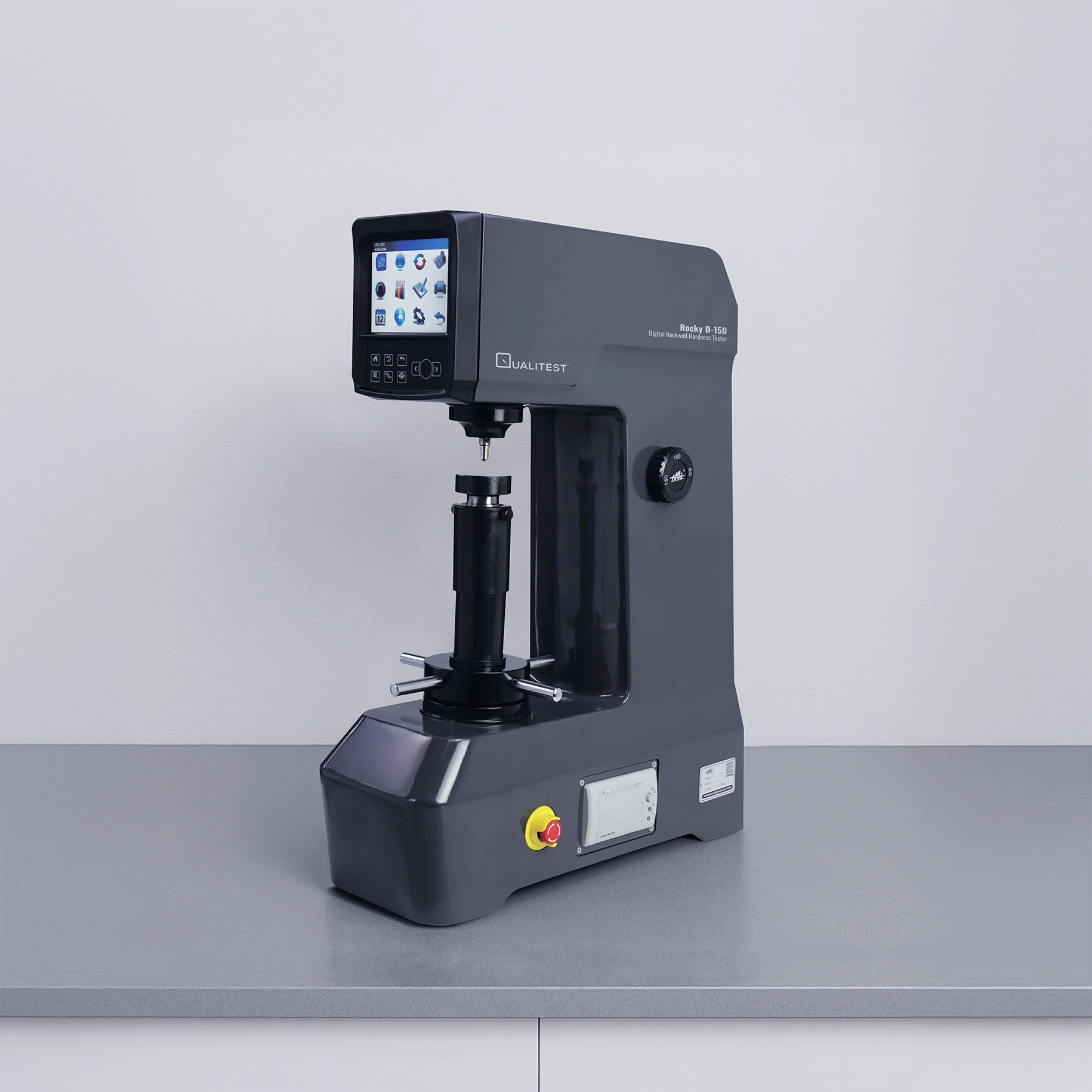

The Rocky D-150 Digital Rockwell Hardness Tester is engineered for environments where precision cannot be compromised by productivity. Combining a high-accuracy motorized loading system with an ultra-sensitive touchscreen interface, it eliminates operator influence to deliver consistent, repeatable results every time.
Ideal for heat treatment facilities and workshops, the Rocky D-150 complies with ASTM E-18, ISO 6508, and JIS Z2245 standards. It features automatic test force loading, built-in hardness conversion (ASTM E140), and an integrated printer for instant data recording.
Standards Compliance
- ASTM E-18 (Standard Test Methods for Rockwell Hardness)
- EN-ISO 6508 (Metallic Materials - Rockwell Hardness Test)
- ASTM E140-12be (Hardness Conversion Tables)
- ISO 18265 (Conversion of Hardness Values)
- JIS Z2245 (Japanese Industrial Standard)
Ideal Applications
Perfect for testing quenched, tempered, annealed, and cold-hardened materials including:
- ✔ Hardened Steel & Carbide (HRA, HRC)
- ✔ Aluminum & Copper Alloys (HRB, HRF)
- ✔ Castings & Malleable Iron (HRG, HRK)
- ✔ Bearing Steels
Advanced Features & Technology
Motorized PrecisionAutomatic loading and unloading of test force minimizes human error and vibration interference.
Instant DocumentationIntegrated thermal printer provides immediate hard copies of test results for QC records.
Automatic ConversionInstantly converts readings to Vickers, Brinell, Leebs, and tensile strength (MPa) per ASTM E140.
Statistical AnalysisAutomatically calculates Max, Min, Average, and distribution curves for batch testing analysis.
Intelligent AlarmsSet upper and lower tolerance limits. The system alerts you immediately if a part fails.
Intuitive Touch InterfacePowered by a dual-core 32-bit ARM processor. Supports 12 languages including English, Spanish, and German.
Technical Specifications
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Test Forces |
Initial: 10 kgf (98.07N) Total: 60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N) |
| Loading Mechanism | Automatic Motorized Loading / Dwell / Unloading |
| Dwell Time | 0 - 60 seconds (Adjustable) |
| Resolution | 0.1 HR |
| Hardness Conversion | HV, HB, HK, HLD, HS, MPa (tensile strength) |
| Data Storage | 200 Individual Groups / 100 Packet Groups |
| Test Capacity |
Max Height: 170mm (100mm with screw protector) Throat Depth: 118mm |
| Dimensions & Weight | 500 × 225 × 660 mm | 68 kg |
