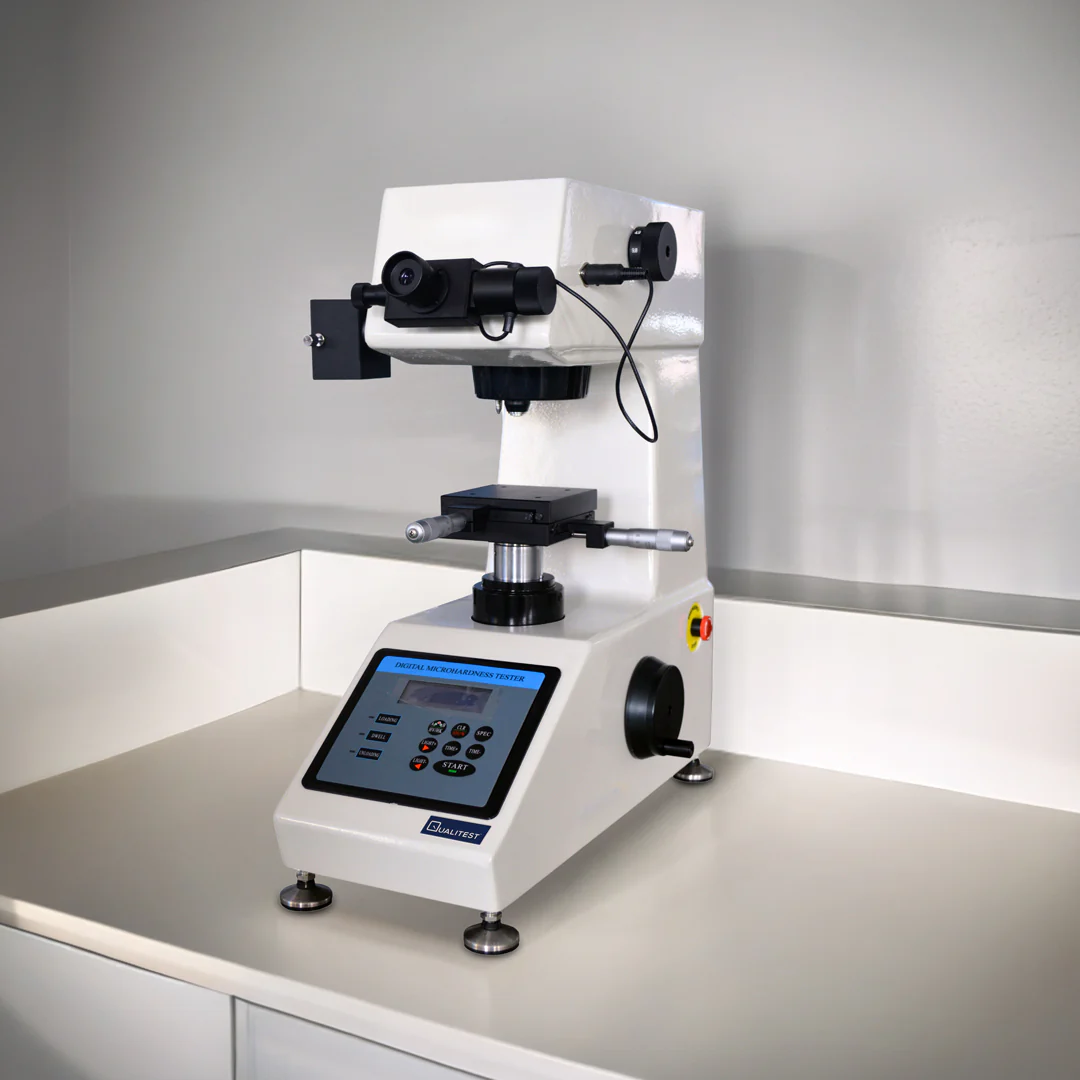

The MicroHV-1000 Series Micro Hardness Testers are an entry-level, budget-friendly units designed to deliver high precision and efficiency in micro hardness testing. It features a unique integration of optics, mechanics, and electronics to ensure clarity in indentation imaging and accuracy in measurement.

Applications:

The MicroHV-1000 Series Micro Hardness Tester is ideal for testing the hardness of ferrous and non-ferrous metals, IC thin sections, coatings, and a variety of other materials. It is especially useful for assessing the hardness of carbonized and quench hardened layers.

Specifications:

With a wide test force range, high hardness resolution, and advanced digital eyepiece, the MicroHV-1000 provides reliable and accurate hardness measurements.

What's in the Box?

The MicroHV-1000 package includes everything you need to start testing immediately:

• Main Unit
• Digital Measuring Eyepiece
• Diamond Indenter
• Objectives
• X-Y Test Table
• Various Clamps and Blocks
• Weights and Axes
• Halogen Lamp
• Power Cable
• Instruction Manual

The MicroHV-1000M and MicroHV-1000A Digital Micro Hardness Tester are designed with a unique precision in optics, mechanics, and electrics. This design ensures clearer indentation images and more precise measurements. The digital measuring eyepiece eliminates the need for manual input of the indentation's diagonal, directly displaying the test mode, test force, indentation length, dwell time, test numbers, and conversion scale. By pressing the eyepiece button after measuring the indentation length, the hardness value is automatically calculated and displayed on the screen. An optional Knoop indenter can be used to measure Knoop hardness, and the tester can be equipped with a CCD image automatic measuring system.

Key Features:

• Precision Design: Ensures clear indentation images and precise measurements.
• Digital Measuring Eyepiece: Directly displays test parameters and automatically calculates hardness values.
• Versatile Application: Suitable for a wide range of materials including metals, ceramics, glass, and more.
• Automatic Operation: Offers automatic loading, dwelling, and unloading for user convenience.
• Compliance: Meets international standards such as ASTM E384, ISO 6507, JIS Z2244, and GB/T 4340.2.

Model	MicroHV-1000M	MicroHV-1000A
Test Force (gf)	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
Test Force (N)	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range	1HV~3000HV
Hardness Resolution	0.1HV
Loading Method	Automatic (Loading/Dwell/Unloading)
Turret	Manual Adjustment	Automatic Adjustment
Conversion Scale	HK, HRA, HRBW, HRC, HRD, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW
Eyepiece	10× Digital Measuring Eyepiece
Objective	10× (Observe), 40× (Measure)
Total Magnification	100×, 400×
Effective Field of View	200μm
Min. Measuring Unit	0.06μm
Dwell Time	0~60s
Light Source	Halogen Lamp
X-Y Test Table Size	100×100mm
X-Y Test Table Travel	25×25mm
X-Y Test Table Resolution	0.01mm
Max. Sample Height	90mm
Throat Depth	100mm
Power Supply	AC220V, 50Hz (110V Available upon Request)
Standards	ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension	480×325×545mm
Packing Dimension	600×360×800mm
Weight	Net Weight: 31kg, Gross Weight: 44kg
