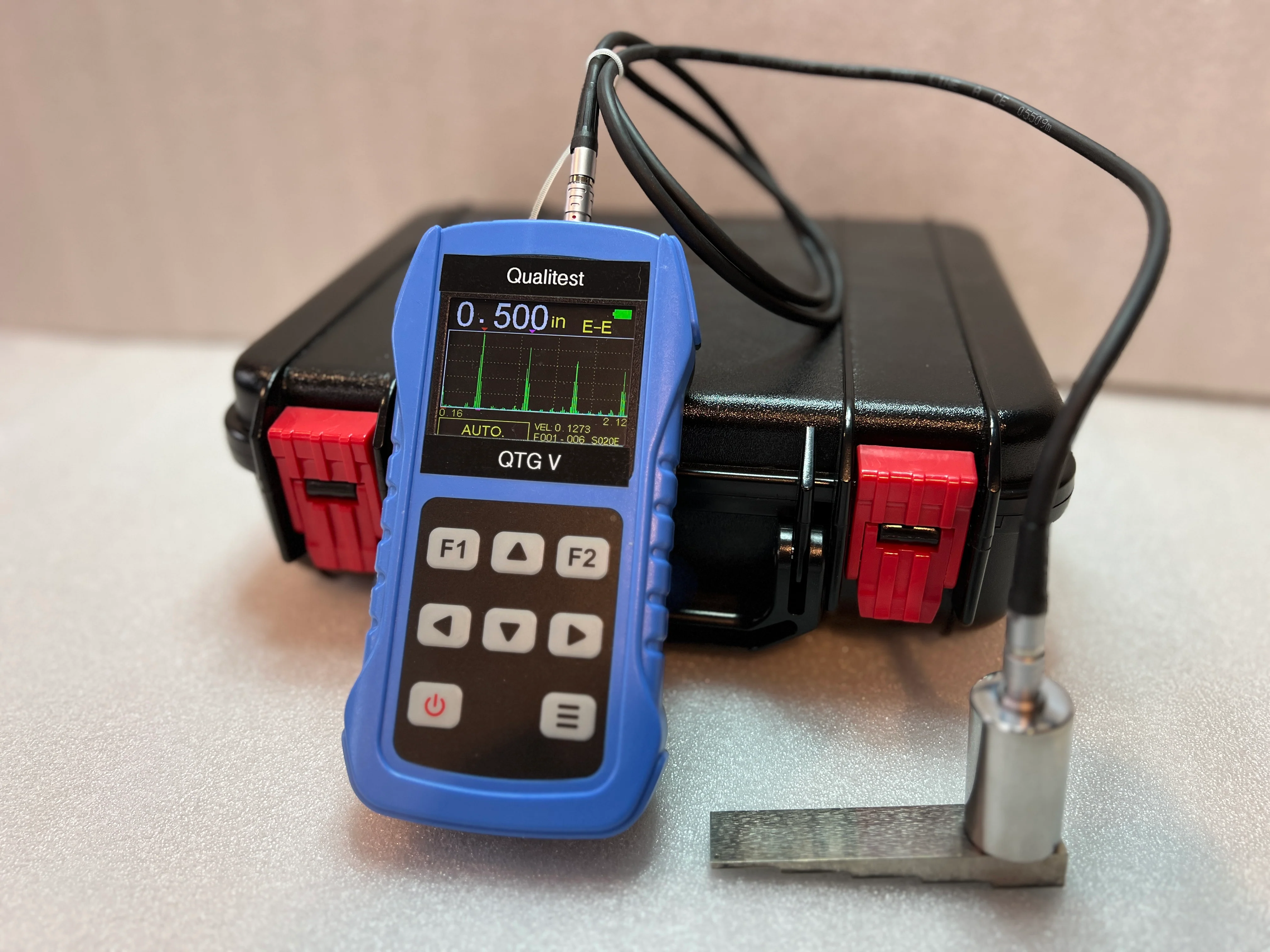

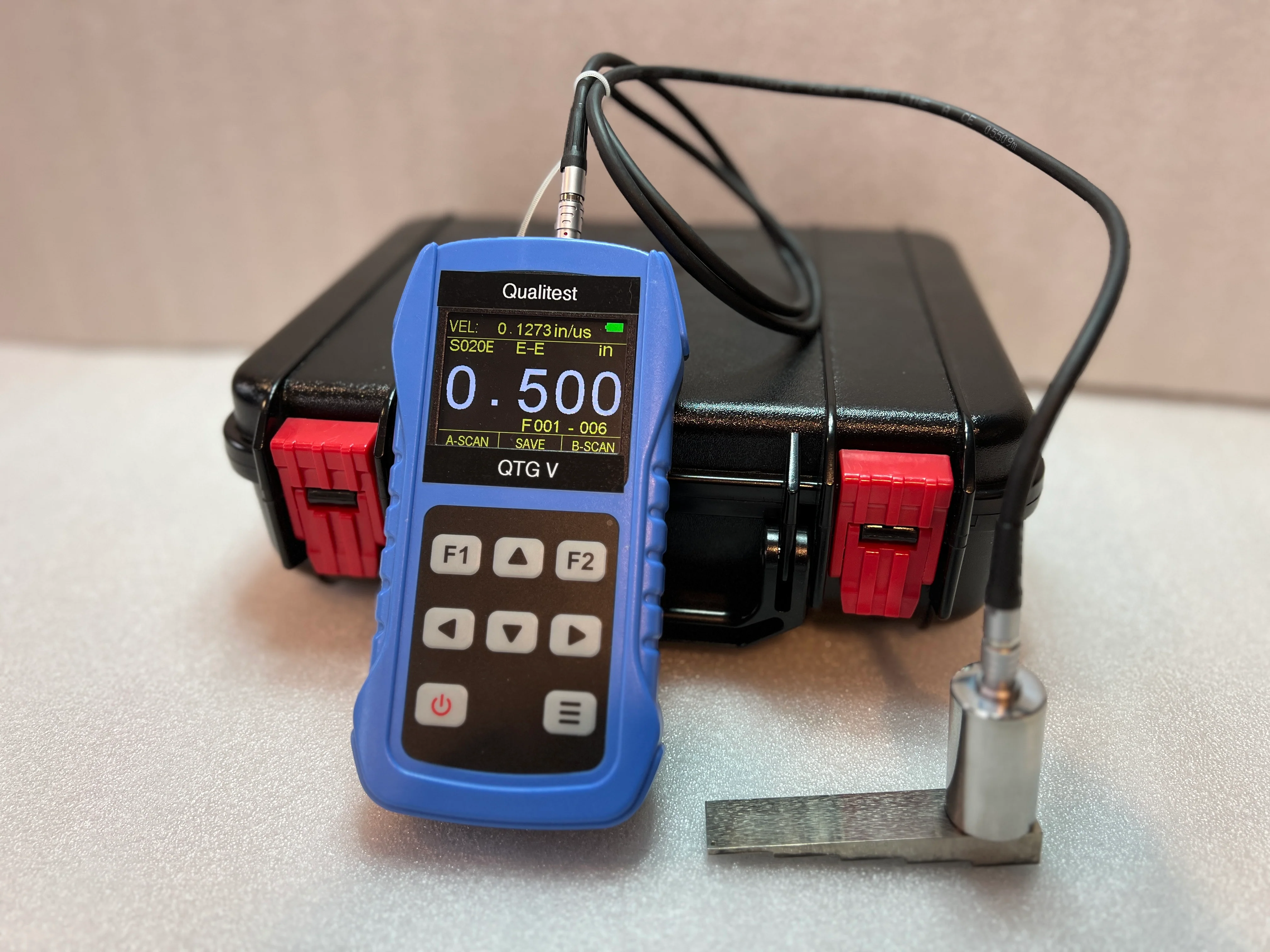

Electromagnetic Thickness Gauge QTG V

Experience a new level of convenience and accuracy with the QTG V Electromagnetic Thickness Gauge. Say goodbye to messy coupling gels and hello to hassle-free thickness measurements on conductive metallic materials. Designed for professionals in various industries, this advanced gauge offers a range of features that make it the ultimate tool for precision measurements.

Key Features of the New QTG V Electromagnetic Thickness Gauge:

• Coupling Gel Not Required - Check wall thickness on conductive metallic materials without the need for a messy couplant.

• Versatile Application - Suitable for steel pipe walls, flat steel, rods, or other metal products, including those with rust or corrosion on the surface.

• Thru-Paint "E-E" Function - Measure metal wall thickness accurately and quickly, even with surface coatings.

• A Scan and B Scan - Utilize both A Scan and B Scan modes for in-depth inspections.

• High-Temperature Capability - Operate in temperatures up to 500°C with a large, colorful TFT display (320x240) for clear visibility.

• Data Logger - Store up to 10,000 data points and easily download them to your PC via USB cable.

• Unit Flexibility - Switch between Imperial and Metric units with Auto Power Off for added convenience.

• Versatile for Different Metal Shapes - Suitable for a wide range of metal shapes, from small pipes to elbow pipes and more.

• Widely Applicable - Ideal for use in Petrochemical, Power Plants, Metallurgy, Ship-building, Aerospace, Wind Power, and more.

Standard Delivery Includes:

• Main Unit
• Magnetic Transducer with Cable
• Calibration Block
• USB Cable
• Carrying Case
• Operating Manual
• Calibration Certificate

Elevate your inspection and measurement processes with the QTG V Electromagnetic Thickness Gauge - the ultimate solution for professionals seeking accuracy, versatility, and ease of use in various industries. Say goodbye to coupling gels and hello to precise measurements, every time.

Technical Specifications of QTG V Thickness Gauge:

Measuring Range	1.5-350mm
Resolution	0.01mm / 0.001 inch
Accuracy	±0.04mm (H<9.99mm), ±(0.1%H +0.04)mm (10<=H<100mm), ±0.3%H (H>100mm)
Temperature Range	-15—500℃
Gain	Auto and Manual
Scan Mode	A and B Scan
Excitation Mode	Permanent magnet
Transducer	Anti-impact withstands wear and tear
Transducer Classification	Normal or high-temperature transducer
Memory	10,000 data
Output	USB (software free)
Display	320x240 color display
Power	#18650 Li-ion rechargeable battery x 2
Temperature	-20℃ to +50℃
Dimensions	181 x 93 x 29 (mm) 7.126 x 3.661 x 1.142 (inches)
Weight	0.5kg | 1.1 lbs (Battery included)
