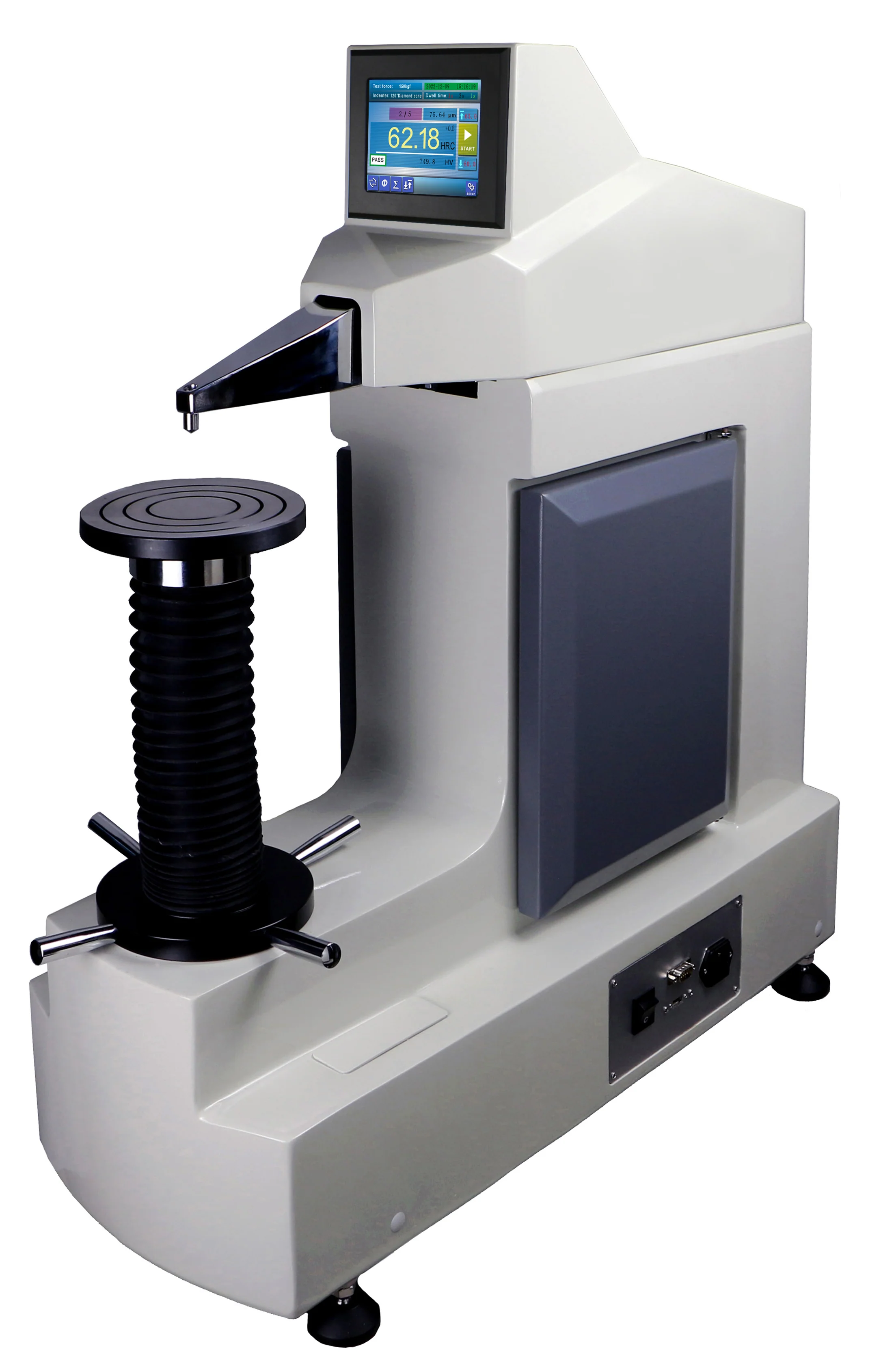

Rockwell Hardness Tester - QualiRock
Metrology-Grade Digital Rockwell Hardness Testing

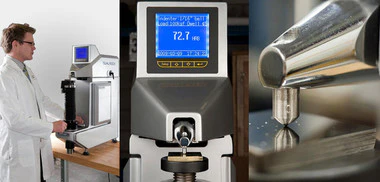

The QualiRock Digital Series represents the pinnacle of deadweight-type hardness testing, engineered to meet and exceed the rigorous standards of ASTM E-18 and ISO 6508. Available in two configurations—QualiRock-R (Regular) and QualiRock-RS (Twin: Regular & Superficial)—these testers combine the reliability of proven mechanical loading with the precision of advanced digital readout technology.
Designed for both high-volume production floors and precision quality control labs, the QualiRock series features a unique Extended Indenter Nose, allowing for the testing of difficult geometries, such as the internal surfaces of rings (>23mm diameter) and external curves of round bars (>3mm diameter), without requiring complex fixtures.
Ideal Applications
Rapidly verify HRC/HRB values on hardened steel, carburized layers, and tempered components to ensure process control.
The protruding nose design enables direct hardness testing on gear teeth and inner bearing races where standard testers cannot reach.
Use the QualiRock-RS (Twin) model for Superficial scales (15N, 30N, etc.) to accurately test thin sheets and surface-hardened layers without penetration through the substrate.
Key Features & Advantages
-
✔
Superior Geometry Access: The horizontal protrudent indenter (Extended Nose) allows you to test surfaces that standard testers cannot reach, including internal tubes (Min Ø 23mm).
-
✔
Advanced Digital Interface: Features a high-definition backlit LCD. Eliminate parallax errors associated with analog dials and reduce operator fatigue.
-
✔
Intelligent Functions: Includes automatic scale conversion (to Vickers, Brinell, Leeb), Upper/Lower limit alarms for QC pass/fail, and curvature correction for cylinders/spheres.
-
✔
Data Connectivity: Equipped with an RS-232 interface for data output to PCs or printers, streamlining documentation and quality audits.
-
✔
High Accuracy & Repeatability: Frame deformation is <0.5% (ASTM requires <1%), ensuring structural rigidity and reliable results even under heavy daily use.
Technical Specifications
| Feature | QualiRock-R (Regular) | QualiRock-RS (Twin Model) |
|---|---|---|
| Hardness Scales |
15 Scales (Regular): HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
30 Scales (Twin): All Regular Scales + Superficial: 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Pre-Load (Minor Load) | 10 kgf (98.07N) | 3 kgf (29.42N) & 10 kgf (98.07N) |
| Total Load (Major Load) | 60, 100, 150 kgf | 15, 30, 45, 60, 100, 150 kgf |
| Resolution | 0.1 Rockwell Unit | |
| Test Height (Vertical) | 220mm (8.6 in.) | |
| Throat Depth (Horizontal) | 150mm (5.9 in.) | |
| Dwell Time | 1 - 50 seconds (Adjustable) | |
| Accuracy Standards | Meets ASTM E-18 & ISO 6508 | |
| Dimensions | 715 x 225 x 790mm | 725 x 245 x 820mm |
| Weight | Approx. 120kg (264 lbs) | |
Standard Configuration Includes
- Main Digital Unit
- Certified HRC Test Block & HRB Test Block
- (QualiRock-RS only: Additional 15N, 30N, 30T Test Blocks)
- 120° Diamond Penetrator (Indenter)
- 1/16" Carbide Ball Indenter & Spare Balls
- Ø 70mm Flat Anvil
- V-Anvil (for cylindrical parts)
- Power Cable & User Manual
*Optional Extension Models available with 230mm heavy-duty anvil.
Click Here to visit the product webpage
