Tablet Hardness Tester - QTab-700

For pharmaceutical laboratories requiring expanded testing capabilities and rigorous compliance, the Qualitest QTab-700 stands as a premier solution for tablet characterization.

Designed to exceed the standards of modern R&D and Quality Control environments, this high-capacity instrument offers an extended testing range suitable for a broader variety of tablet formulations. By automating critical measurements—including hardness and diameter—the QTab-700 significantly reduces manual workload while ensuring consistent, audit-ready results.

The QTab-700 is engineered for data-driven decision-making, automatically capturing and calculating peak, minimum, and mean values for every batch. This provides immediate insight into the physical integrity of your samples. With its enhanced capacity and intelligent automation, the QTab-700 is the ideal upgrade for facilities seeking to optimize their quality assurance workflows.

QTab-700 Key Advantages:

• Secure Access Control: Maintain strict data integrity with a hierarchical user management system, featuring detailed audit trails and secure long-term storage to meet compliance standards.

• High-Performance Electronics: Powered by advanced integrated circuits, the system ensures rapid data processing and automatic statistical analysis for instant batch reporting.

• Superior Load Cell Technology: The QTab-700 utilizes a high-sensitivity load cell designed to maintain exceptional accuracy across its extended 700N range.

• Optimized Testing Cycles: Maximize laboratory throughput with rapid cycle times, capable of completing individual sample tests in approximately 15 seconds.

• Modern Touch Interface: A high-definition, capacitive touch screen offers an intuitive navigation experience, reducing operator training time and error.

• Space-Saving Footprint: Engineered to maximize bench space, this compact unit delivers heavy-duty performance and reliability while maintaining a low energy profile.

• Operator Safety Features: Designed with a low-current operating voltage to ensure the highest safety standards for laboratory personnel.

• Extended Batch Protocols: Support high-volume QC with the ability to program automated sequences for up to 1,000 consecutive tablets.

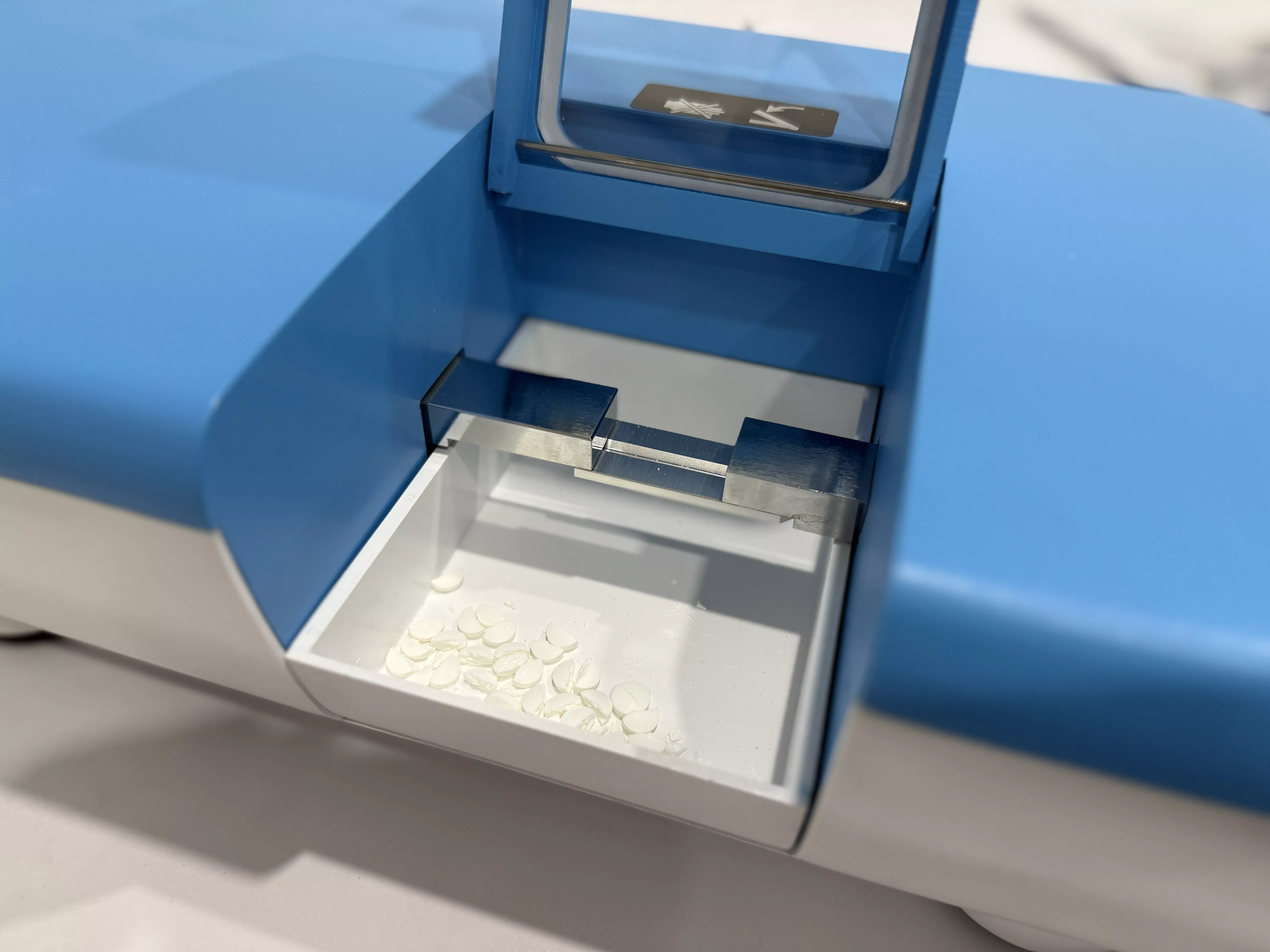

• Visual Process Control: A transparent, high-clarity lens window over the test chamber provides operators with an unobstructed view of the testing process.

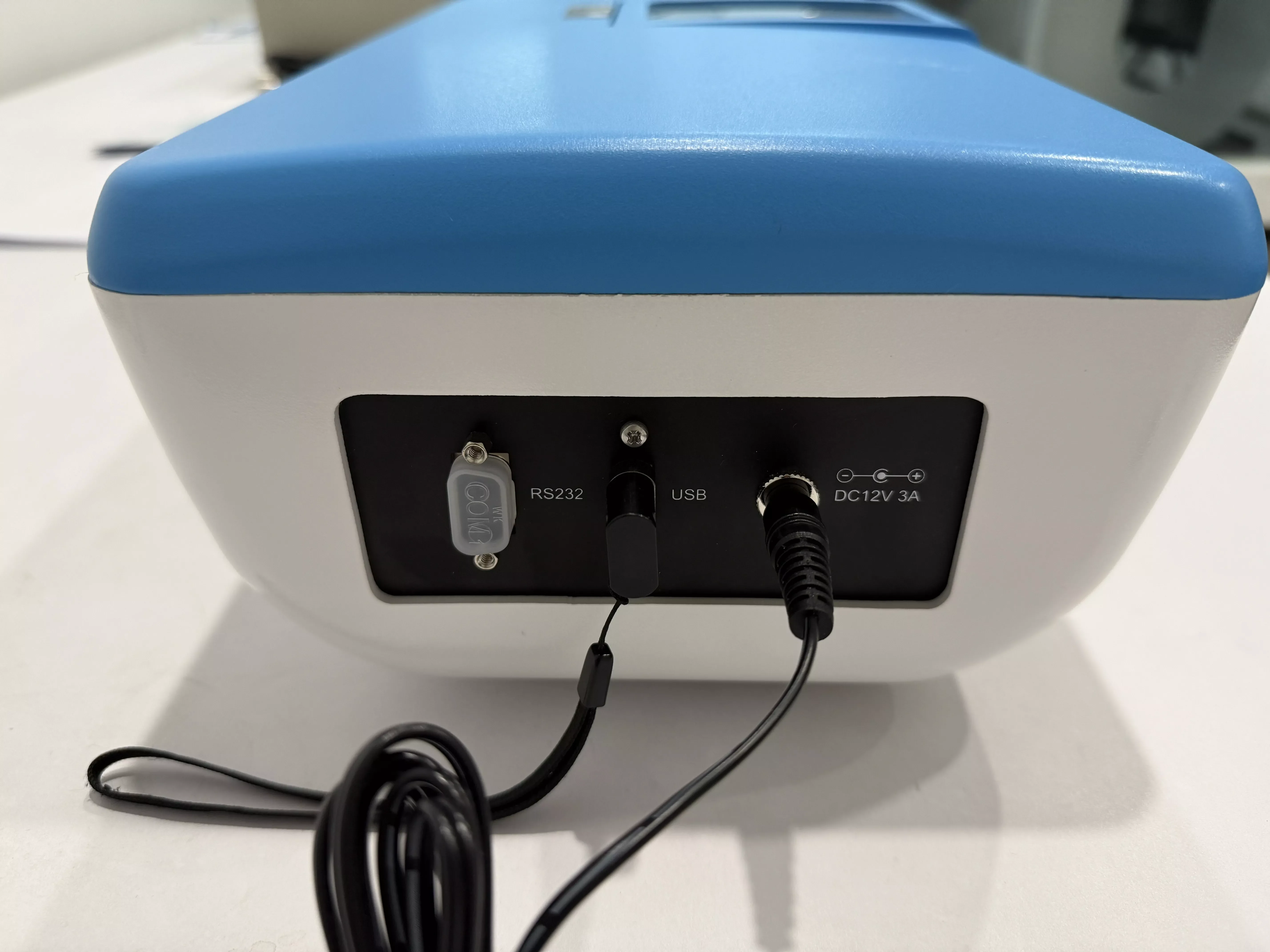

• Smart Connectivity: The system features intelligent fault detection and enables seamless data export or printing via standard USB and RS232 interfaces.

Tablet Hardness Tester - QTab-Series Specifications:

Model	QTab-700
Hardness Range	10 - 700N
Resolution	0.01 N
Accuracy	± 1.5% ±1 digit
Diameter Range	2 – 25 mm
Diameter resolution	0.1 mm
Measuring Unit	N/kg (optional)
Test Method	Automated ( maximum 1000 tablets)
Data Transfer	USB or RS232 interface
Power	AC100- 240V (DC 12V 3.0A)
Net weight:	25.35 lb - 11.5k g
Dimensions: (L×W×H)	18.11” x 8.66” x 5.12” 46×22×13 cm
