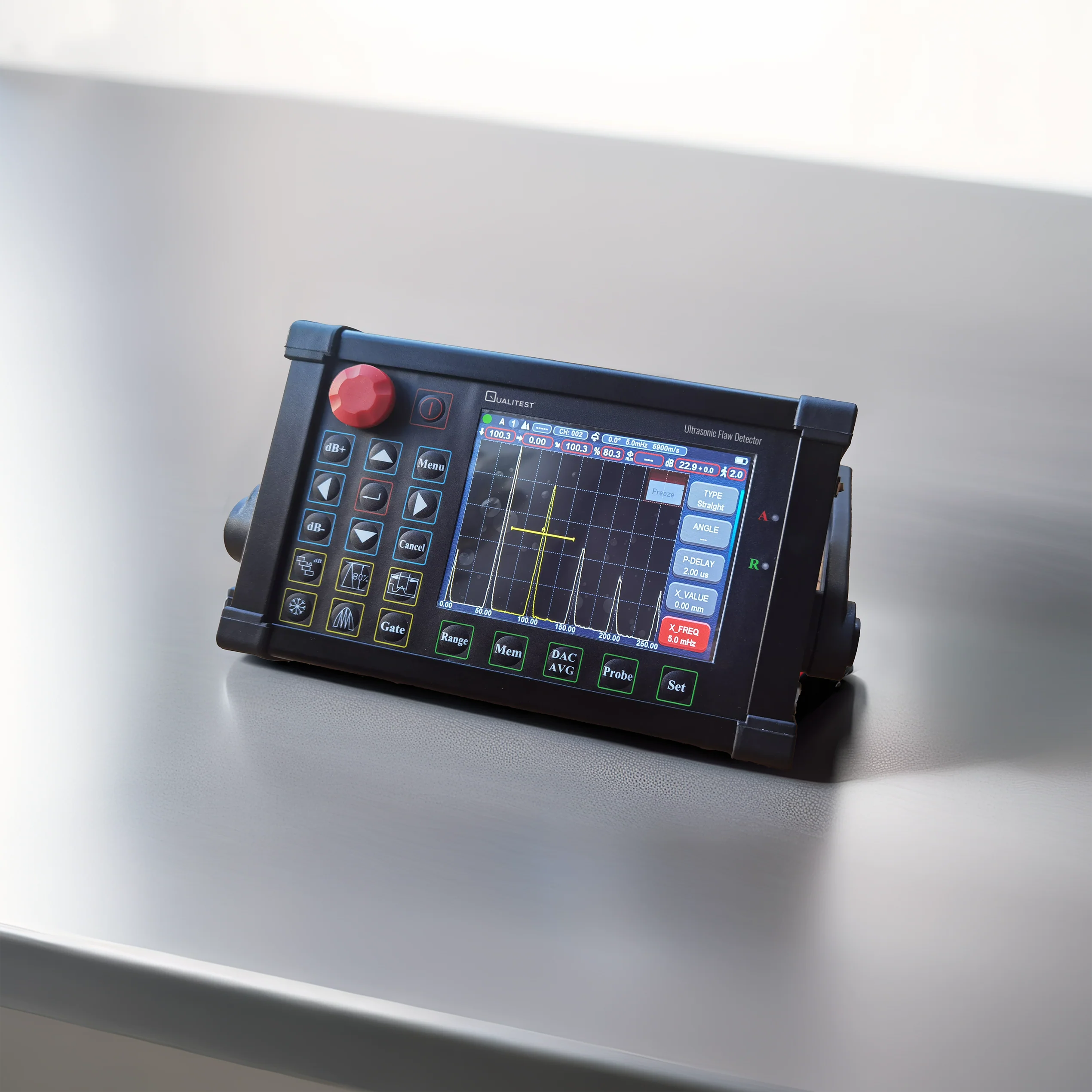

Ultrasonic Flaw Detector QFD-200 Plus
Next-Generation Ultrasonic Inspection for NDT Professionals
The QFD-200 Plus Ultrasonic Flaw Detector is a high-performance digital inspection tool designed for the precise detection of internal defects in welds, forgings, and composites. Combining IP65 ruggedness with advanced signal processing, this unit delivers laboratory-grade accuracy in the harshest field environments.
Equipped with a high-speed sampling rate and a bright color display, the QFD-200 Plus simplifies complex evaluations using automated DAC, AVG, and TCG curves. With features like real-time video recording and AWS D1.1 support, it is the ultimate solution for code-compliant weld inspection and corrosion mapping.
Industrial Applications
🏗️ Structural & Weld Inspection
Built-in AWS D1.1 functions and Angle Beam probes make it ideal for inspecting bridges, steel frames, and pressure vessel welds.
Built-in AWS D1.1 functions and Angle Beam probes make it ideal for inspecting bridges, steel frames, and pressure vessel welds.
🛢️ Oil, Gas & Pipelines
Detect corrosion, cracks, and inclusions in pipes and tanks. The IP65 waterproof design ensures reliability in offshore or rainy conditions.
Detect corrosion, cracks, and inclusions in pipes and tanks. The IP65 waterproof design ensures reliability in offshore or rainy conditions.
🚄 Rail & Axle Testing
High penetration power and specific Color B-Scan imaging allow for deep-penetration inspection of solid axles and rails.
High penetration power and specific Color B-Scan imaging allow for deep-penetration inspection of solid axles and rails.
Functions of Ultrasonic Flaw Detector QFD-200 Plus
- Precise Flaw Location: Automated display of flaw details, including depth (d), level (p), distance (s), amplitude, sz dB, and ф.
- Flaw Sizing: Automatic defect measurement using AVG or DAC/TCG for faster defect evaluation and reporting.
- Automated Calibration: Easily calibrate transducer zero-point, angles, front edge, and material velocity (supports V2 and two-hole methods).
- DAC/TCG & AVG Evaluation: Conveniently create and modify curves for accurate echo analysis.
- Unlimited Memory: Connects to a U-Disk for extensive storage capacity.

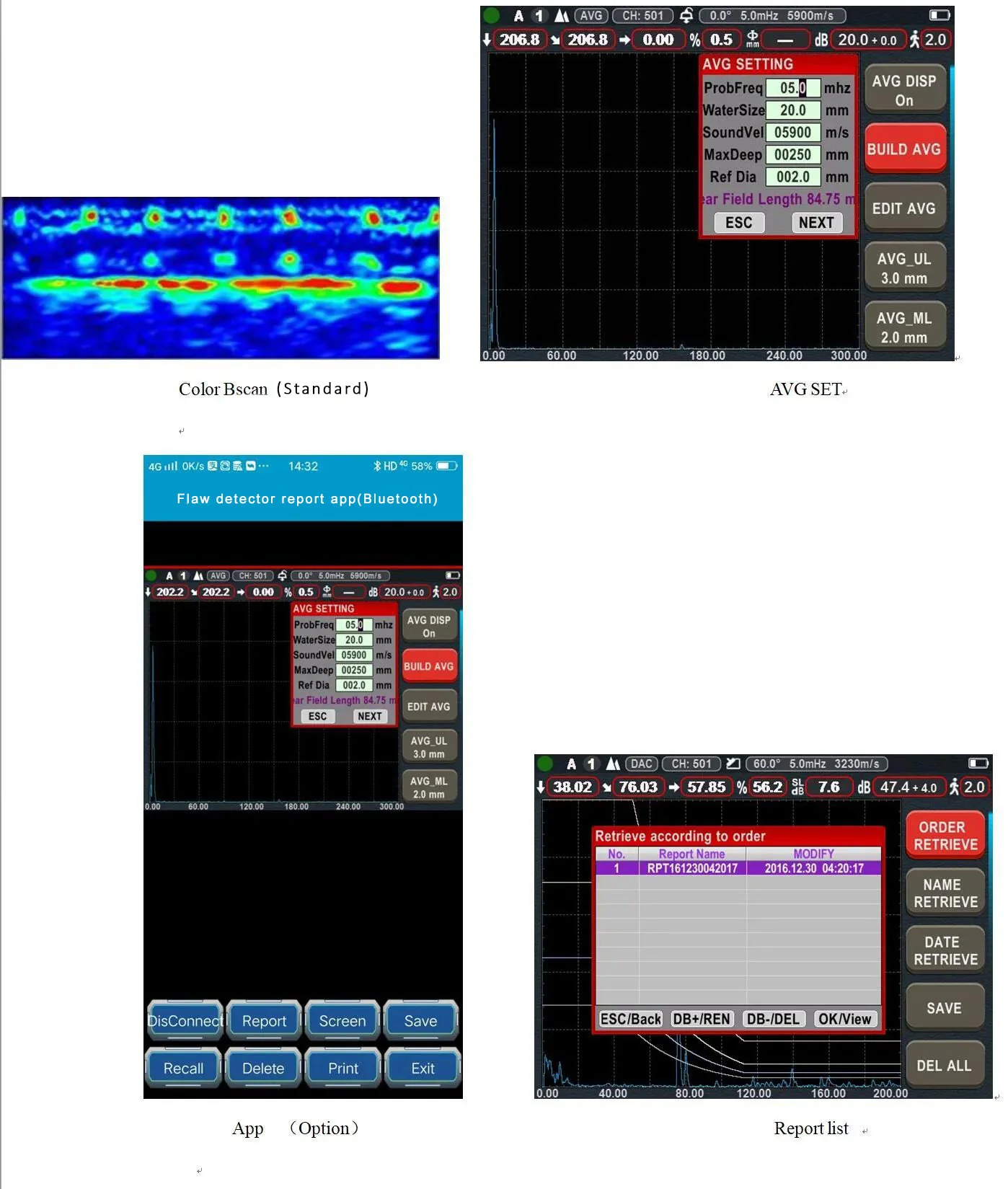

- Color B-Scan: Provides a detailed color scan for improved flaw detection.
- Video Recording: Record and replay test processes with unlimited video length via USB storage (optional).
- Built-in Standards: Includes 15 preset standards for streamlined operations.
- Bluetooth Connectivity: Wirelessly connect to mobile devices for on-site detection reports and printing (optional).
- Advanced Features: Includes AWS D1.1 support, curved surface correction, and crack height measurement.
- Magnify Gate: Expand gate range across the entire screen for detailed analysis.
- Auto-Gain Function: Automatically adjusts gain for optimal results.
- Envelope Display: Simultaneously show live A-scan at a 70 Hz update rate alongside the envelope display.
- Peak Hold: Easily compare frozen peak waveforms to live A-scans for clear result interpretation.
- Scan Freeze: Hold and display waveform and sound path data.
- Alarm System: Audible beeps and LED alerts for immediate notification of critical conditions.
Technical Specifications
| Measurement Range | 0 - 10,000 mm (at steel velocity) |
| Material Velocity | 100 ～ 20,000 m/s |
| Frequency Range | 0.5 - 25 MHz (High Bandwidth) |
| Gain / Dynamic Range | 0-110 dB Adjustable / ≥38 dB Dynamic Range |
| Test Modes | Pulse Echo, Dual Element, Thru-Transmission |
| Gate Monitors | Two Independent Gates (A & B) with Audible/LED Alarms |
| Memory Storage | 1,000 Internal Waveforms + Unlimited via USB |
| Battery Life | ~15 Hours (5200 mAh Li-Ion Rechargeable) |
| Environmental Rating | IP65 (Water/Dust Resistant); -10℃ to 50℃ Temp Range |
| Dimensions & Weight | 240 × 150 × 50 mm | 1.4 kg (3.1 lbs) |
Standard Delivery Package
• QFD-200 Plus Main Unit
• Straight Beam Probe (2.5 MHz, Ø20mm)
• Angle Beam Probe (4 MHz, 8x9mm, 60°)
• Probe Cables (Q9-C9 & C9-C5)
• Power Adapter & Battery Pack
• USB Drive with Software
• Carrying Case & Strap
• Calibration Certificate
Click Here to visit the product webpage
