Overview

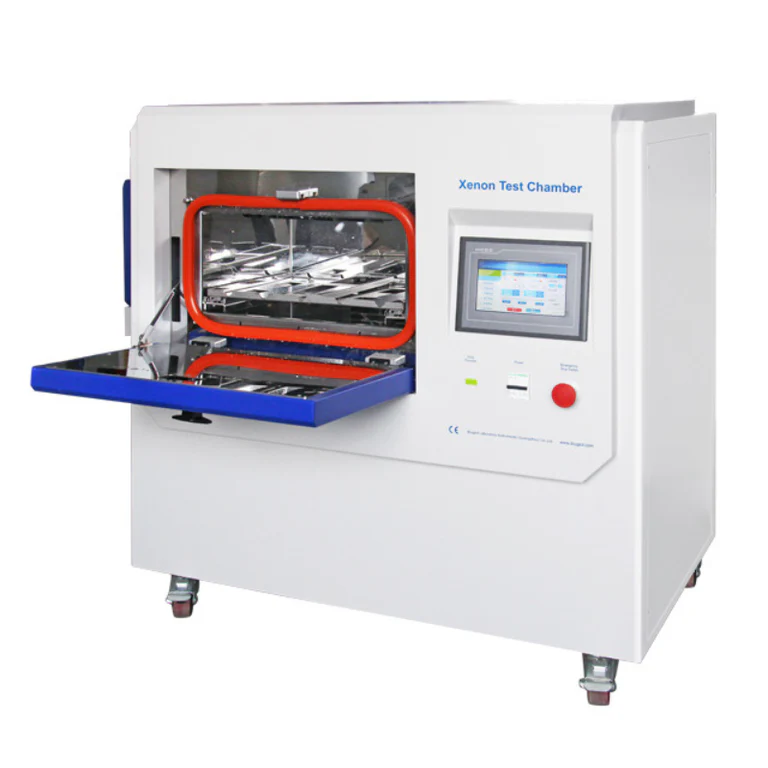

The Quali-Xenon200 is a compact, floor-standing unit designed to bridge the gap between small desktop testers and massive industrial machines. It offers the perfect balance of footprint and performance, allowing you to run comprehensive weathering cycles in a smaller lab space.

This xenon test chamber accurately simulates the full spectrum of sunlight—including Ultraviolet (UV), Visible, and Infrared (IR) light—giving you a reliable prediction of how polymers, paints, and organic materials will hold up after years of outdoor exposure.

Key Features

• True-to-Life Sunlight Simulation: Real-world damage comes from the total solar spectrum, not just UV rays. This xenon weathering chamber replicates natural daylight perfectly, whether you are testing for direct outdoor exposure or sunlight filtering through window glass. It is the ideal tool for predicting common aging issues like fading, chalking, cracking, and loss of tensile strength.

• Rain and Thermal Shock Capabilities: Weather is rarely static; it involves sudden rain showers and rapid temperature drops. We equipped this unit with a specialized water spray system featuring nozzles positioned on both the front and back of the sample rack. By rapidly cooling hot samples with water, you can perform rigorous thermal shock tests to identify physical stress points that standard dry testing would miss.

• Automatic Energy Compensation: One of the biggest challenges in weathering tests is the natural fading of lamps over time. This xenon lamp weathering test chamber solves that issue with an intelligent monitoring system. It tracks radiation energy in real-time and automatically increases power to compensate for any drop in lamp intensity, ensuring your test results remain consistent and comparable year after year.

• Complete Environmental Control: You have full command over the testing climate. The system allows you to program specific cycles of light and dark, while strictly controlling the chamber's temperature and humidity. By alternating between high-heat irradiation and wet/dry periods, you can recreate the exact environmental stress your product will face in the field.

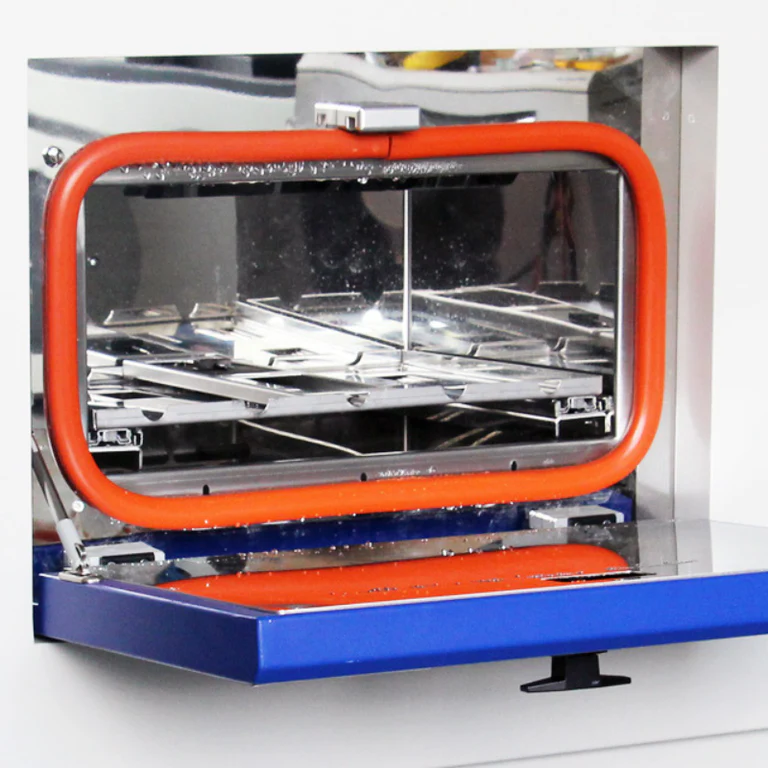

• Uniform Exposure Design: Unlike static flat-bed testers, this model features a rotating sample rack. As the rack spins around the central xenon lamp, it ensures that every single test piece receives the exact same amount of light energy and water spray. This eliminates "hot spots" and guarantees consistent data across your entire batch.





Techincal Specifications of Quali-Xenon200
Light Source	1.8kW American-made Air Cooled Xenon Lamp with a service life of up to 2,000 hours
External Dimensions	1,000 x 615 x 1025 mm – 39.37 x 24.21 x 40.35 in
Effective Exposure Area	1,000 cm2 (9 pieces of 150x70mm samples can be placed at a time)
Filter	UV Extension Filter (Daylight filter or optional window glass filter)
Irradiance Setting Range	With American-made Xenon Lamp: 50W/m2 ~ 100W/m2 (300nm ~ 400nm) or 0.3 W/m2 ~ 1.0 W/m2 (@ 340nm) or 0.5 W/m2 ~ 1.8 W/m2 (@ 420nm)
Note	Support light, spray, humidity function, no temperature function
Weight	135kg
Voltage	Single phase 220V/50 Hz (Or 110V/60Hz) Please specify when ordering
