Overview

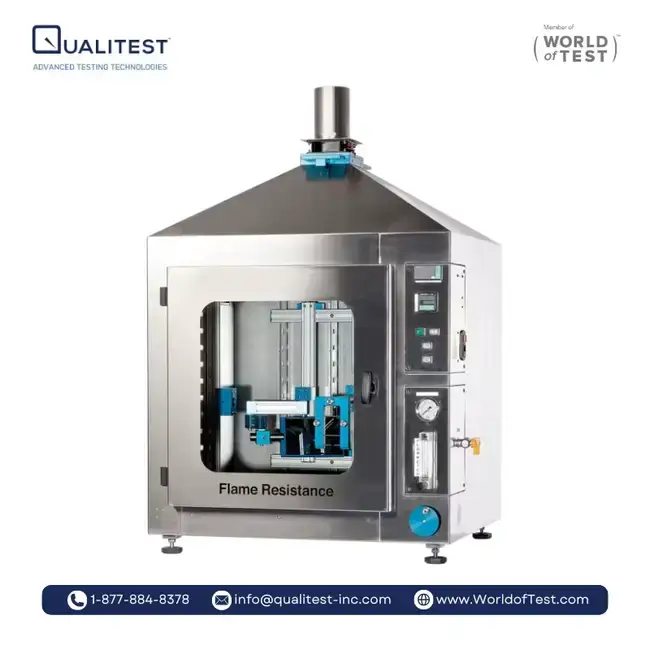

The QualiFlame™ UL94 is a purpose-built flammability test chamber for checking how easily plastics used in electronics and appliances burn.

This UL 94 compliant system is made to line up with a whole host of international standards, letting you do both sideways and upright burning checks. It’s a great setup for quality control labs and R&D teams needing to get exact information on material fire resistance.

Features & Benefits

• High-Tech Flame Management: A special gas meter with a number screen makes sure you have exact control over the gas flow, which keeps the flame very steady for consistent test conditions.

• Flexible Holders and Angles: A burner setup you can move allows for checks at 0°, 20°, and 45° angles, and the sample holder can even move on its own, which is great for plastics that get smaller when they burn.

• Made for Easy Use: A tough glass door helps you keep a close eye on the sample, and a timer you can use from a distance helps you keep exact track of time during the test.

• Good Safety and Airflow: The system has a way to pull out smoke from the top to quickly get rid of any gases from the burning process, making the work area safer.

• Small Footprint: The whole flammability test chamber is put together to be compact, so it can easily fit on a workbench in your laboratory.

UL 94 Flammability Chamber – Horizontal Vertical Flame Chamber QualiFlame™ UL94 Technical Specifications

Standards	Test Methods	Classification
UL 94 Clause 7 ASTM D635 IEC 60695-11-10 Method A	50W, Horizontal Burning Test	HB
		HB40
		HB75
UL 94 Clause 8 ASTM D3801 IEC 60695-11-10 Method B	50W, Vertical Burning Test	V-0
		V-1
		V-2
UL 94 Clause 9 ASTM D5048 IEC 60695-11-20	500W, Vertical Burning Test	5VA
		5VB
UL 94 Clause 11 ASTM D4804 ISO 9773	50W, Thin Material Vertical Burning Test	VTM-0
		VTM-1
		VTM-2
UL 94 Clause 12 ASTM D4986 ISO 9772	500W, Horizontal Burning Foamed Material Test	HBF
		HF-1
		HF-2
